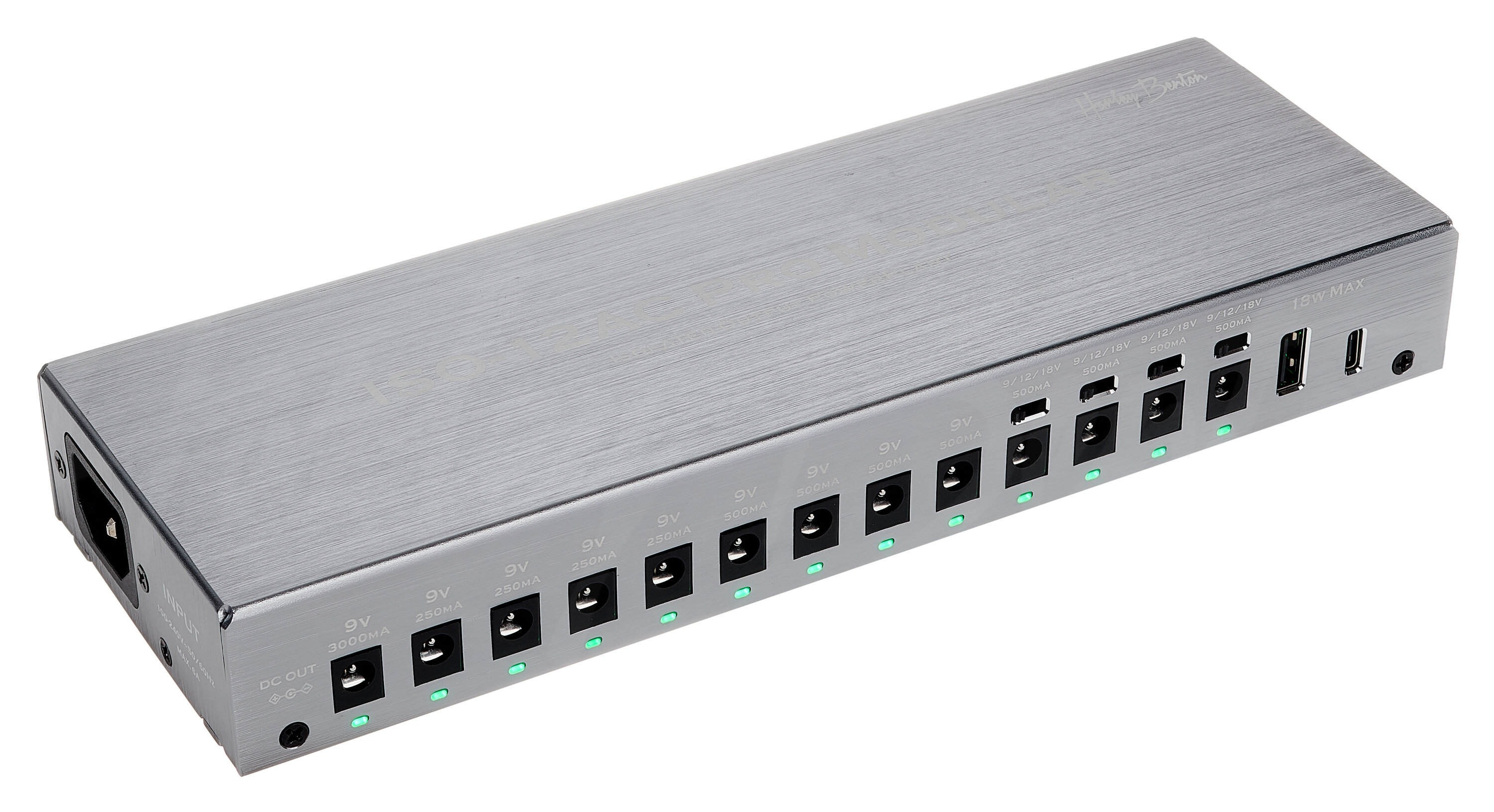

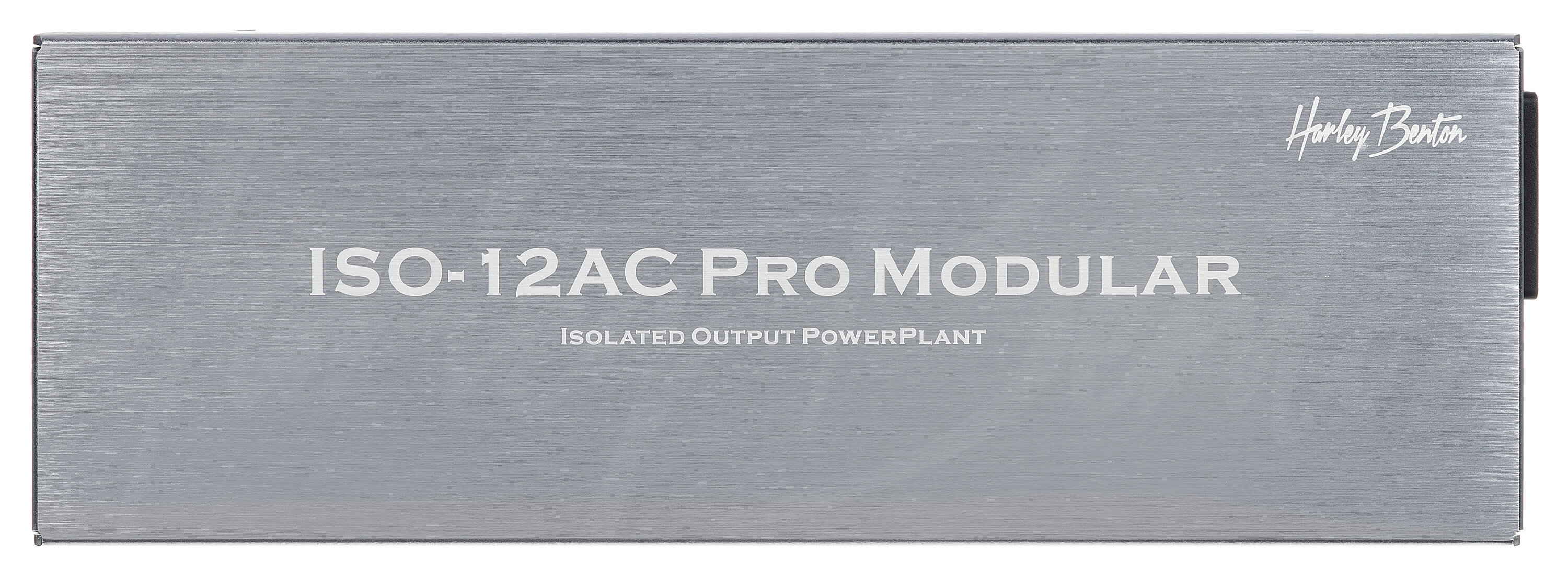

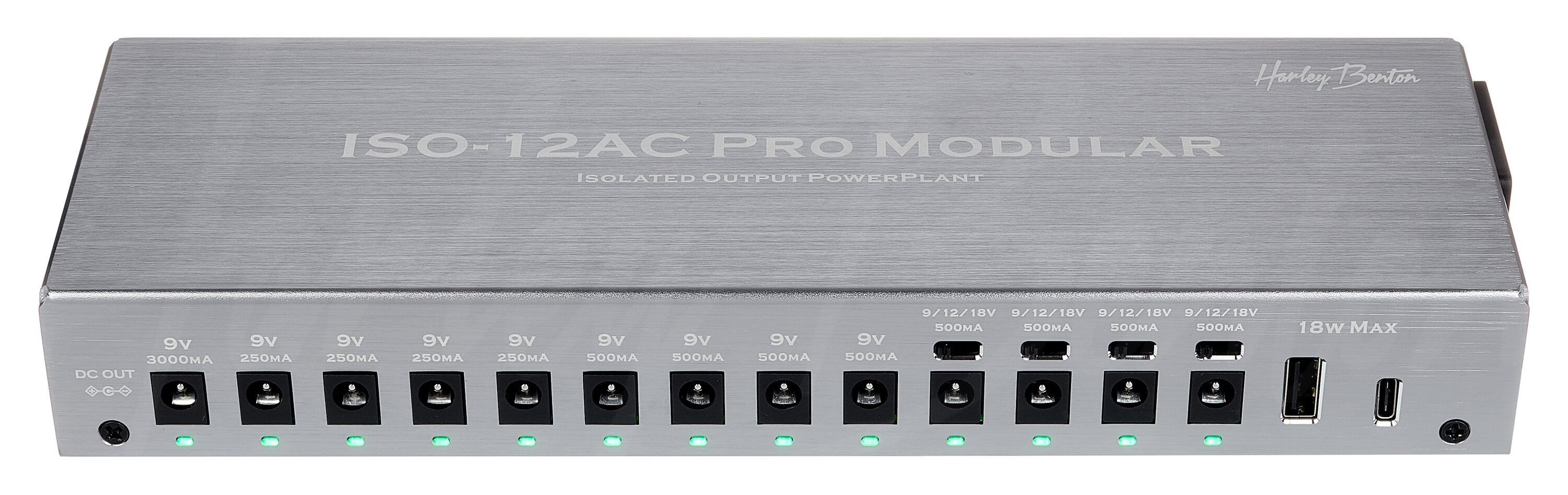

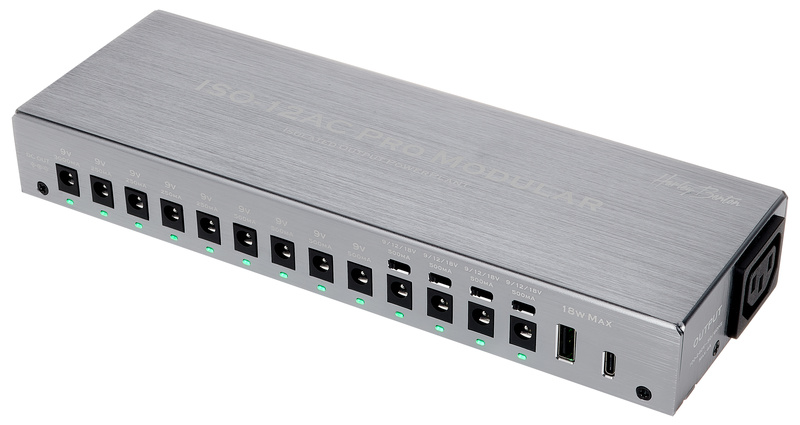

PowerPlant ISO-12AC Pro Modular

The Harley Benton PowerPlant ISO-12AC Pro Modular is a high-performance power supply unit designed for effects pedals. Featuring 12 individually isolated outputs and one non-isolated output to eliminate noise and hum, it should satiate even the most power-hungry pedalboards. You get support for various voltage and current configurations to accommodate modern digital effects, with LED monitoring for each output. The unit operates with a universal 100-240V AC input and includes additional USB-A and USB-C ports for charging tablets and phones. The modular design allows multiple units to be connected, and it comes with various DC cables and connectors. A compact, sturdy aluminium housing keeps it protected on or underneath pedalboards, making it a versatile and reliable power solution for musicians. Whether you're performing live or working in the studio, the PowerPlant ISO-12AC Pro will make sure your pedals are powered and ready.

Specifications

  • High-performance model
  • 12 Individually insulated and 1 non-insulated outputs
  • Filtered and short-circuit-proof outputs eliminate noise and hum
  • High current capability for modern digital effects
  • LED monitoring at each output

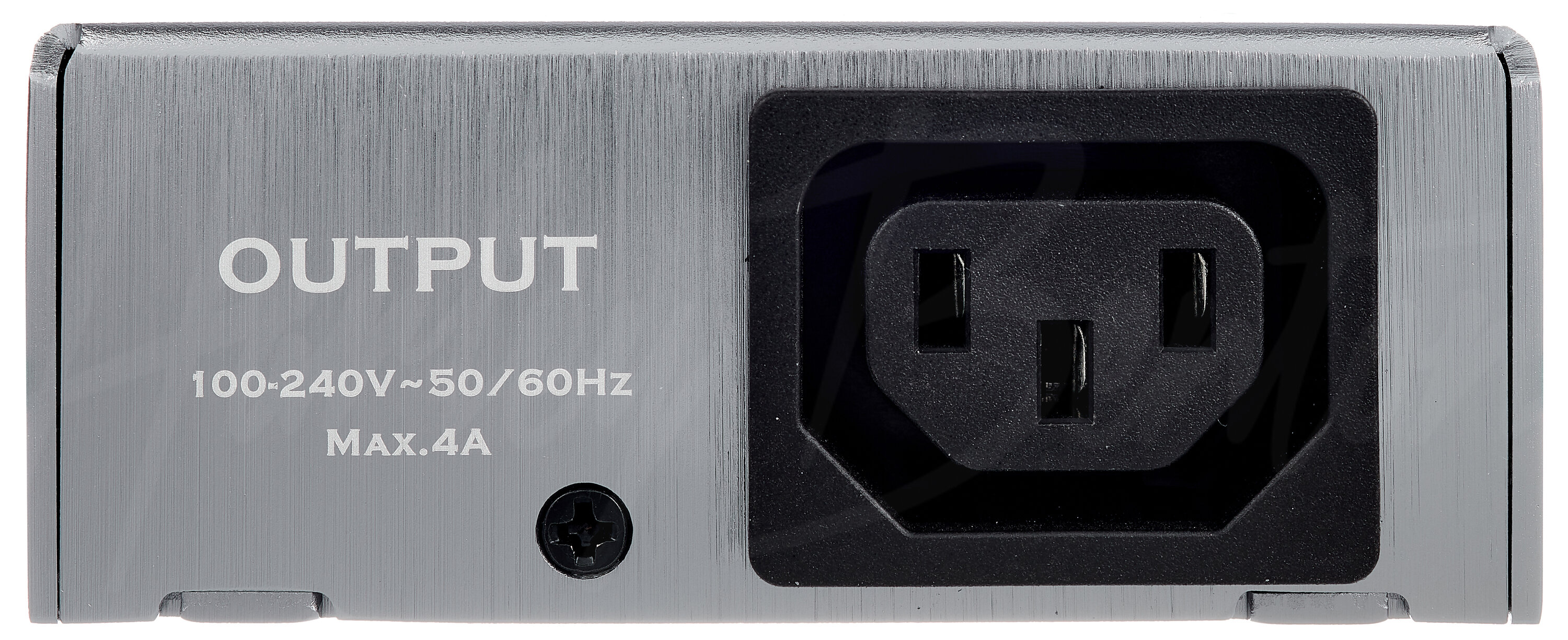

  • The modular AC main output enables the connection of two or more devices via Kettle socket to plug (included in the scope of delivery) or as an AC link to the power strip
  • The total output power of the device must not exceed 27 W

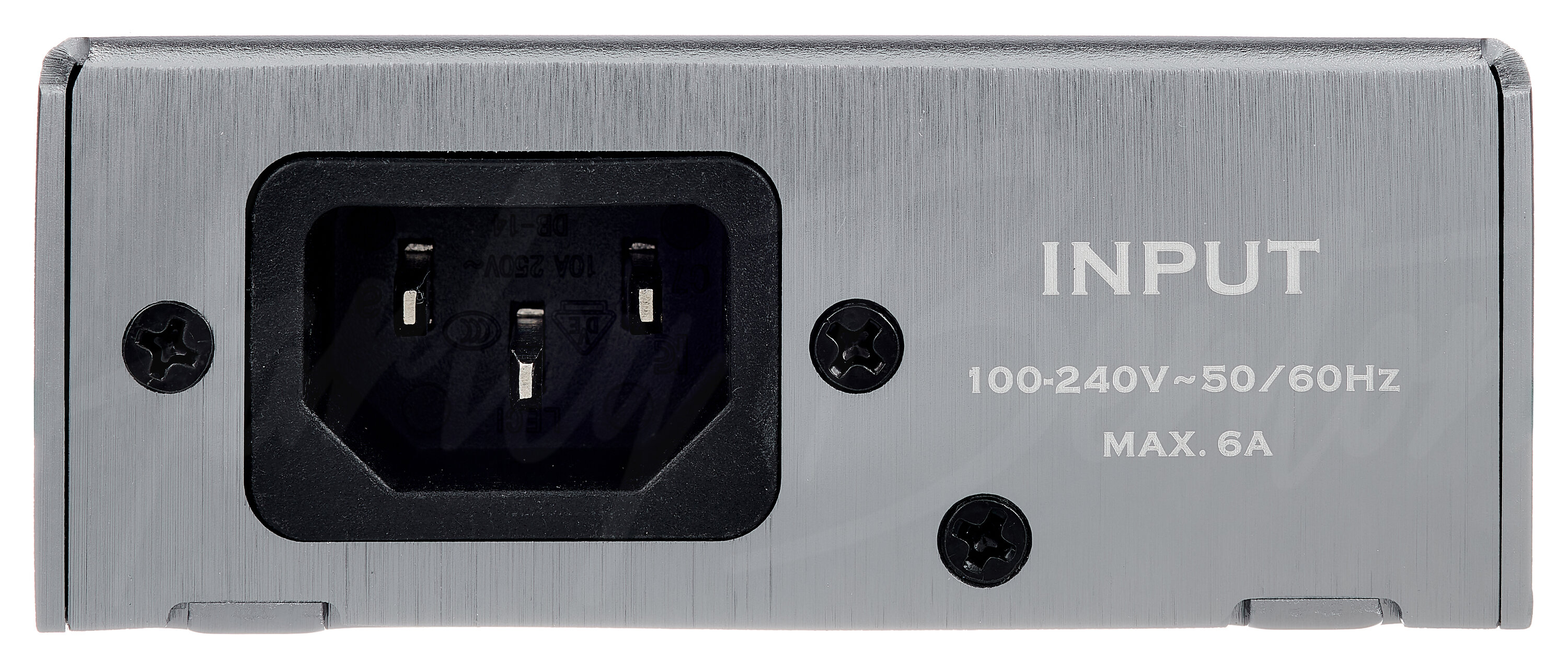

  • AC circuit 100 - 240 V universal input voltage

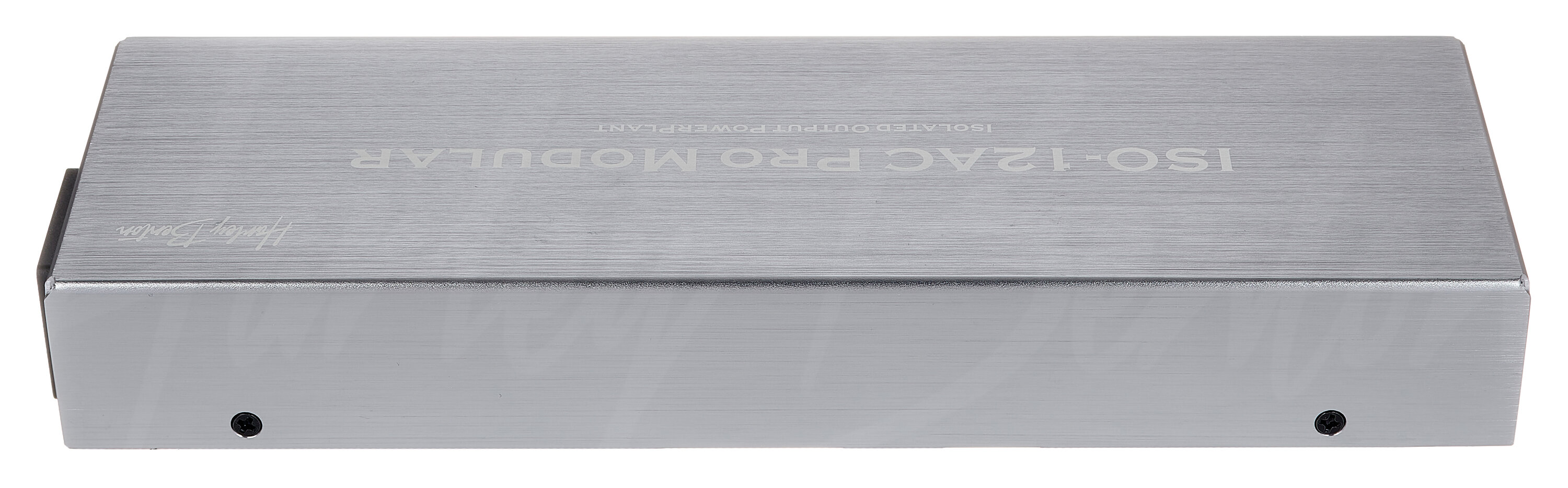

  • Sturdy, compact aluminium housing
  • Can be used on or under pedalboards
  • Dimensions (H x W x D): 35 x 256 x 88 mm
  • Weight: 748 g

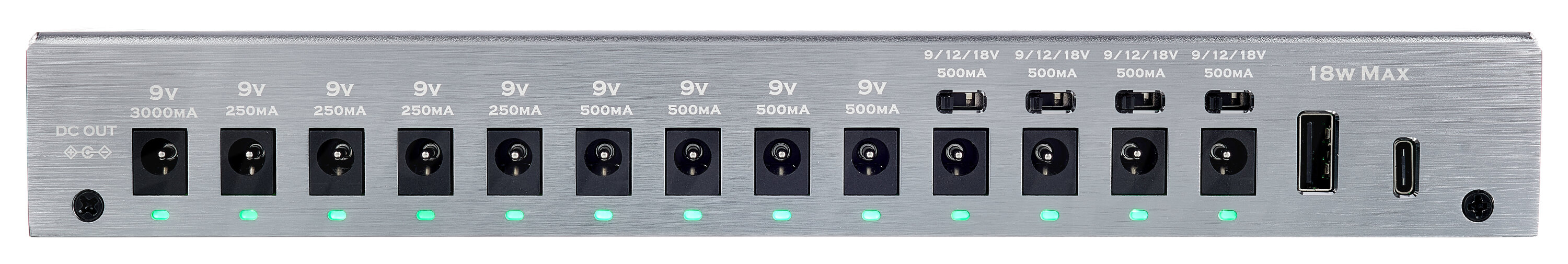

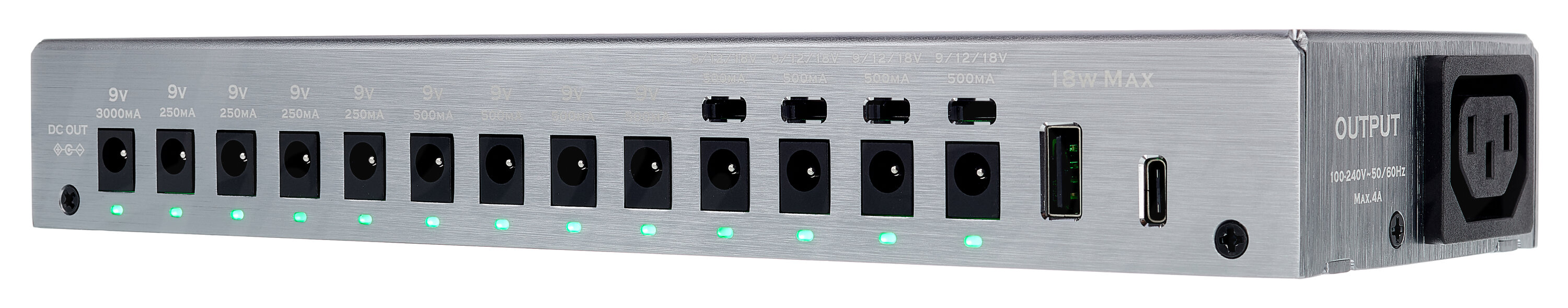

  • Connections:
  • 4 Outputs 9 V DC, max. 250 mA (individually isolated)
  • 4 Outputs 9 V DC, max. 500 mA (individually isolated)
  • 4 Outputs, switchable 9 / 12 / 18 V DC, max. 9 V 500 mA, 12 V 375 mA, 18 V 250 mA (individually isolated)
  • 1 Output 9 V / 3 A DC for the power supply of effects with high power consumption and MultiFX devices (not isolated)
  • 1 USB-A and 1 USB-C for power supply and charging tablets and smartphones, max. 18 W

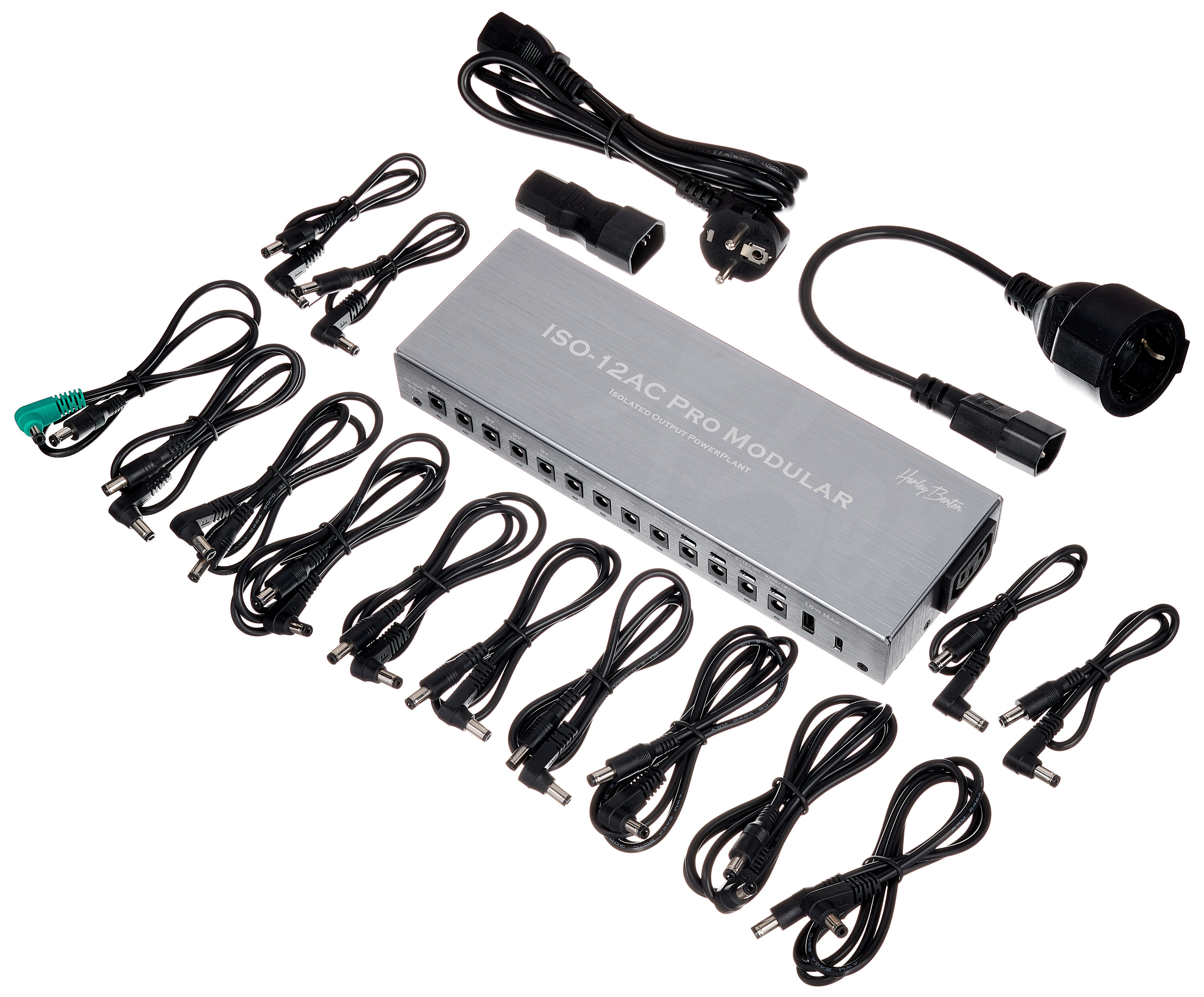

  • Cables included:
  • 4 DC cable 30 cm
  • 5 DC cable 60 cm
  • 4 DC cable 90 cm
  • 1 Connection cable 45 cm for Line6 pedals (straight plug 5.5 x 2.1 mm to green angled plug 5.5 x 2.5 mm)
  • 1 AC Kettle plug connection (female to male)
  • 1 AC power connection cable 1.2M with EU plug
  • 1 AC connection cable 15 cm from Kettle plug to EU socket
